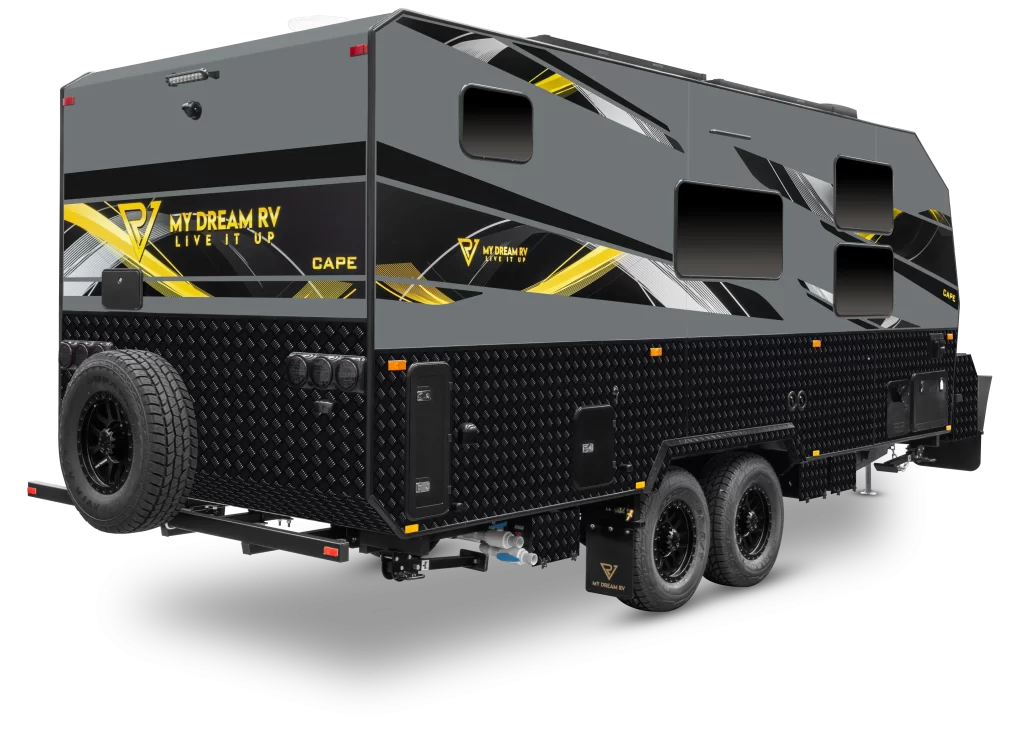

19 Cape
The Cape 19 offers a balance of space and rugged durability.
Built to withstand challenging environments, it includes a reinforced chassis and modern amenities that provide a premium off-road experience.
Perfect for travelers looking for self-sufficient adventures.
Here's 19 Cape Floorplans and corresponding dimensions:
CHASSIS
6" Heavy Duty Chassis with 2" Raiser
6" A Frame Return to Spring Hangers
Extended A-Frame with Toolbox
D035 Coupling
Drop Down Stabilizers
Galvanized Wheel Arches
A Frame Tap & Gas Regulator
8" Jockey Wheel
Checkerplate Water Tank Hose Guard
12" Disc Brakes w/ Sway Control Adapted
H/Duty 3 Arm Bumper
Stage 4 Airbag Suspensions
Alloy Pull Out Step
Safety Breakaway System
265/75 R16 A/T and alloy Wheels
Windup Jack
2 x Batteries Mounted on Chassis Roadside
Spare Wheel Fitted to Rear Bumper
1-Piece Eco Flooring
1-Piece Fibreglass Roof
Stone Guard
Rear Recovery Points
Toolbox w/ Gen Slide, Weber Slide & Gas Bottles in the Middle
ATM Tandem Axle 3500kg
Power Jack
PLUMBING
Instant Hot Water System
12V Water Pump
2 x Water Tank inlets (Lockable)
Mains Presure Water Inlet
Water Filter in Sink with 3 way Tap
2 x 95L Water Tanks
Wall Mount Gas Bayonet
Composting Toilet
Dual 9kg Gas Bottles with Changeover Regulator in Toolbox
Fridge: 270L Compressor
2 Burner Portable Induction Cooktop
Thetford Duplex MK3 Grill Oven
Twin Water Level Gauges
A Frame Mains Pressure Tap
100L Grey Water Tank

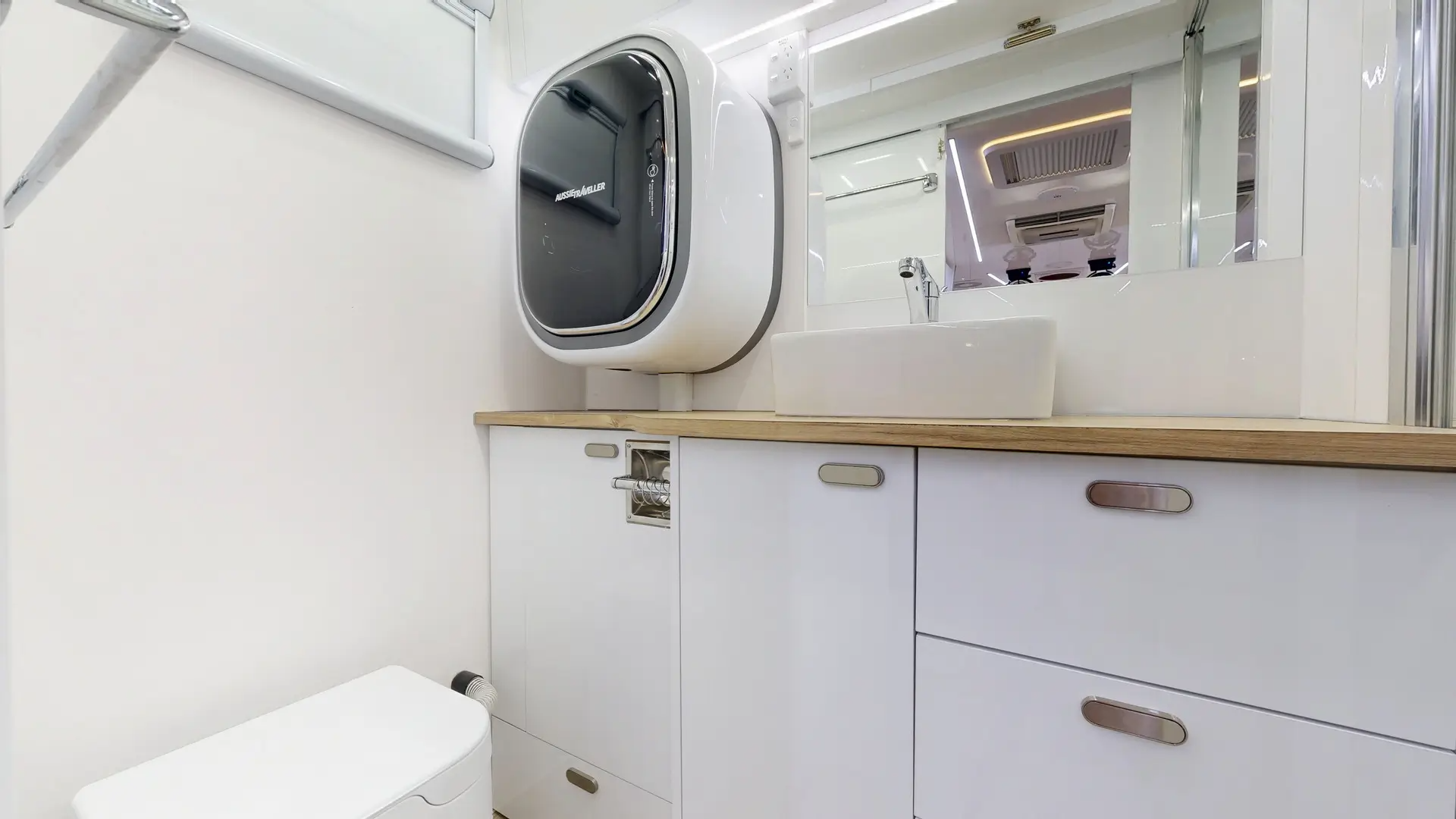

Washing Machine
External Shower
Checkerplate Water Tank Guard
Pipe Lagging
Grey Water Bypass

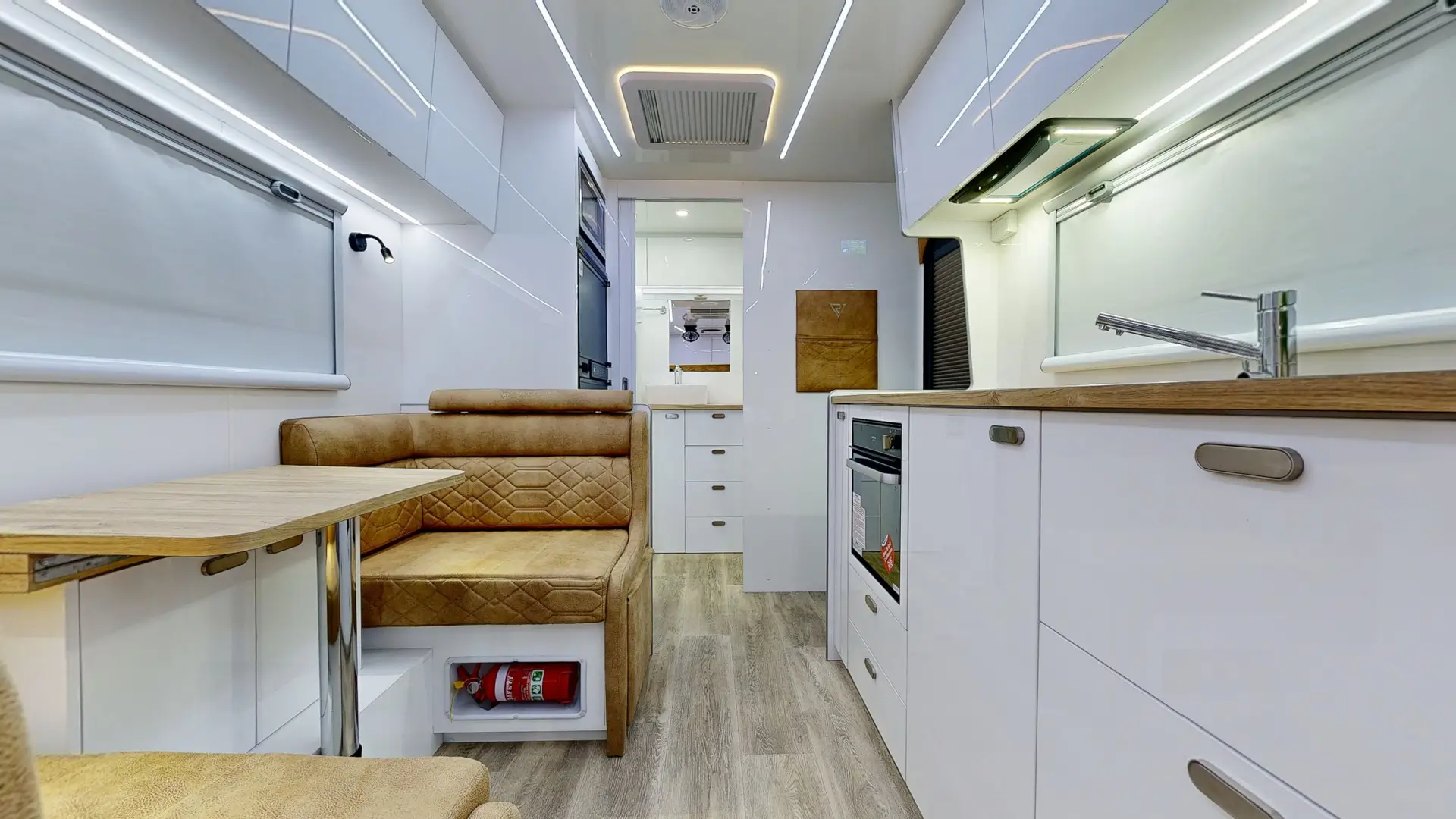

INTERNAL

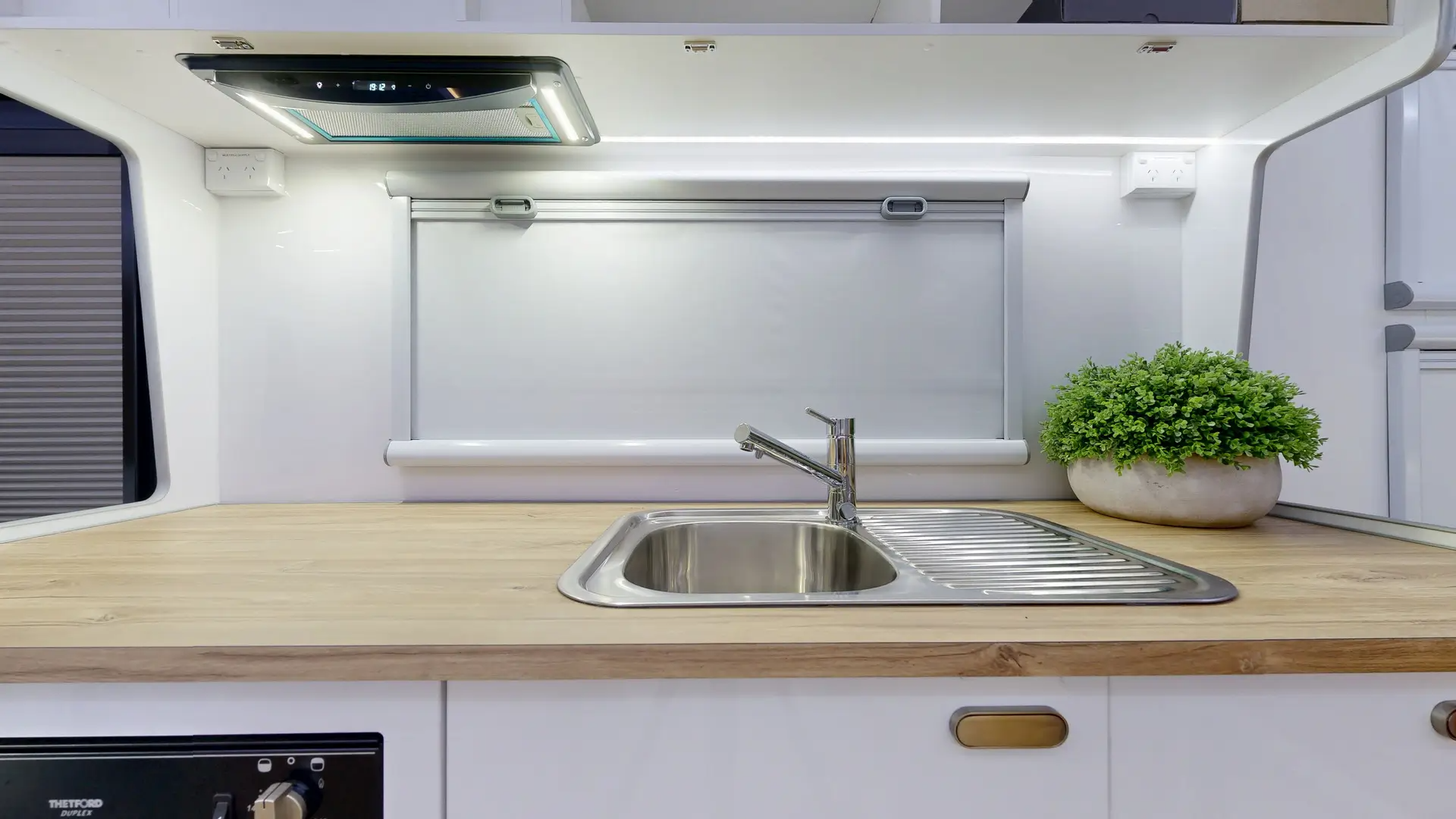

Laminate Benchtops
Wardrobes with pigion hole storage
CNC Furniture & Partitions
2 Single Towel Rails, 1 Toilet Roll Holder
Smoke Detector
Grab Handle on Entry Door
Fire Extinguisher
Splashbacks
Premium Soft Close Drawers on Metal Runners
Flatbed Microwave
Cutlery Tray
Mirror in Ensuite

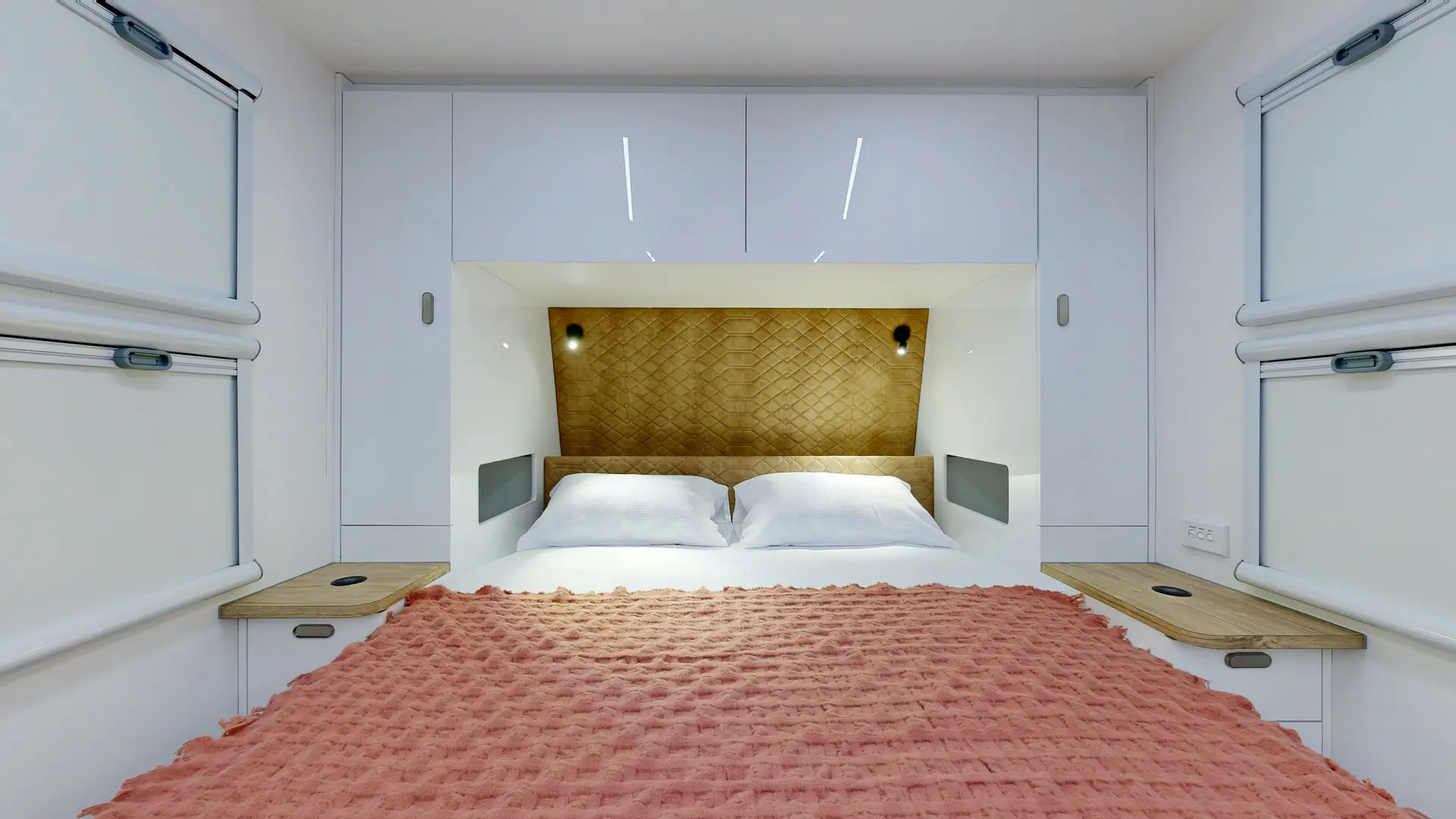

Pillowtop Mattress
Telescopic Table Leg if Applicable
12V Rangehood

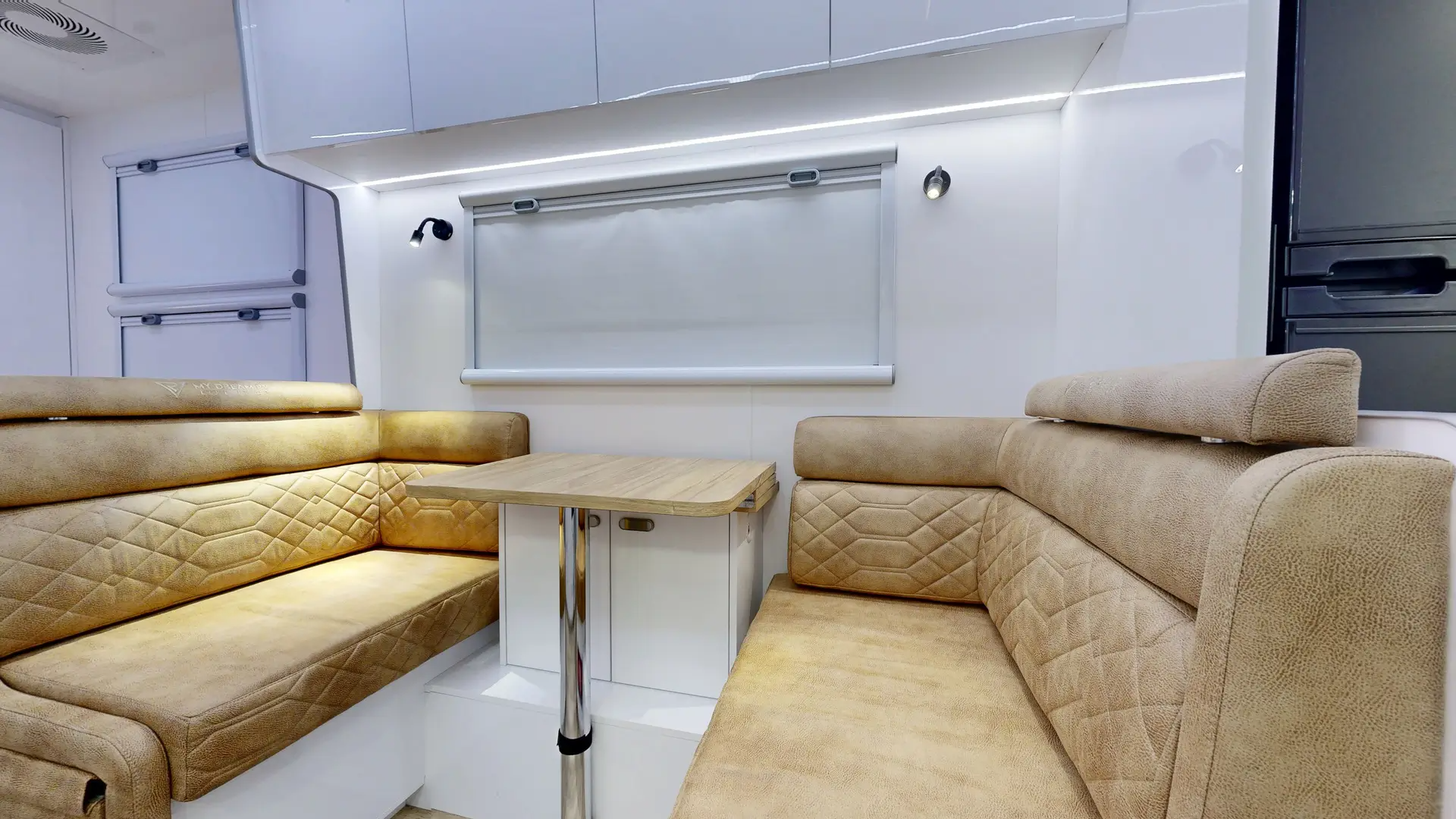

Leatherette Upholstery w/ Footrests and Headrests
Flush Mounted Concealed Handles
Removable Shelves in Cabinets
Slide Out Bench
EXTERNAL
700mm Side Checkerplate
Front & Rear Checkerplate
Locking Main Security Door
Aluminium Frames
Wall & Roof Insulation
Black External Trim
12V Hatches to Toilet & Shower
EV2 Double Glazed Windows with Blinds
Twin Windows on Each Bedroom Wall if Possible
External Pantry
Roof Air Conditioning
Rain Sensing Hatch above the Bed
Galvanized Tunnelboot Liner
Centre Cradle
Aluminium Composite Panel Sides
Checkerplate Wheel Spats
Premium Artwork Decal
HPT DRS Next to Hatch above the Bed
Roof Skylight
6-Step Ladder
ELECTRICAL
Touch Screen Stereo with 2 x Roof Speakers
4 x 200W Solar Panels with Separate Solar Regulator
Door Light & Entry Handle
24" Flat Screen TV on Wall Bracket
Roof Omni Directional Antenna
LED Strip Lighting in the Ceiling, above/underneath OHC, in Kicker
12V/USB Socket & TV Point @ external
12 Pin Trailer Plug with Charging and Fridge Capabilities
2 x LED Reading Lights in Bedroom + 2 in Lounge area
240V/USB Double Power Points , 2 x in Robes + Lounge
Reversing Camera & Car Monitor Kit
2 Way Switch in Bedroom to Ensuite Lights
External TV Box
Victron MultiPlus - II BMS w/ 7" Colour Display, 2x 300amp Lithium Batteries
4x Annexe Lights w/ Bug Lights - 2 under Awning, 1 above Tunnelboot, 1 on Roadside
240V 15amp Inlet & 240V 10amp Outlet
2 x External Marine Speakers
2x Wireless Phone Chargers in Bedside Tables
Electronic Sway Control
2x Bedroom Fans
Front & Rear LED Spot Lights
3000W Inverter Wired to All GPOs inc. MW and Air Con w/ 25amp DC to DC Charger
Starlink Provision
LED Strip Light Under Chassis
