17 Cape

The Cape 17 is designed for adventurers who seek off-road capability without compromising on comfort.

Featuring a robust chassis and premium interior fittings, this model is ready for remote destinations.

Its compact yet efficient layout ensures a smooth travel experience in any terrain.

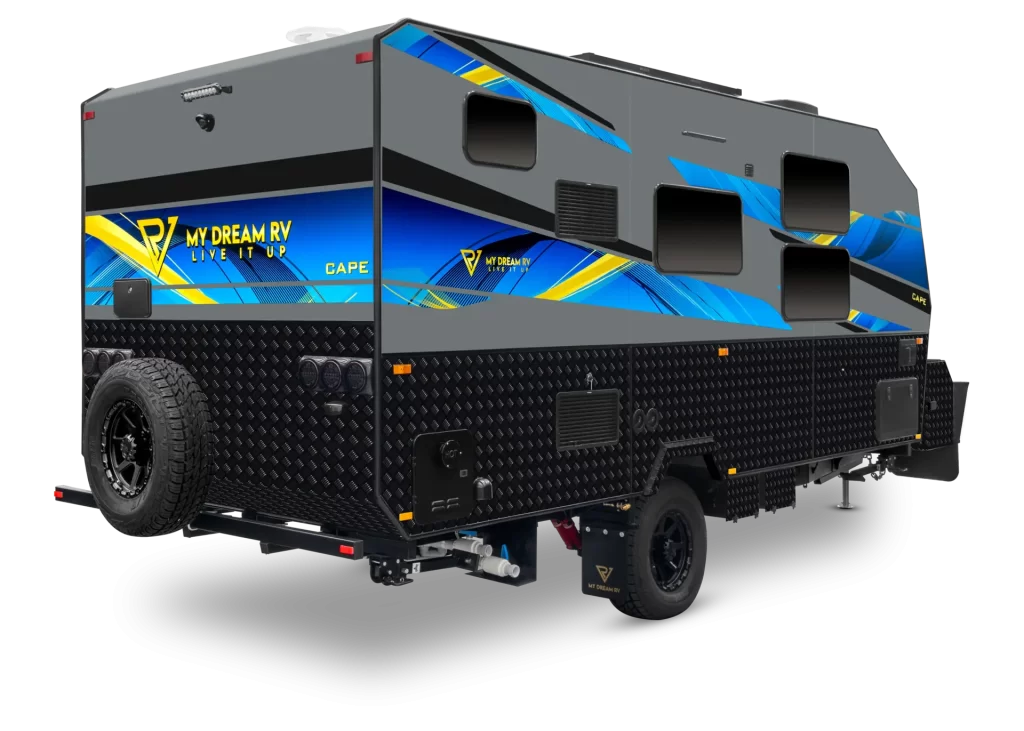

17ft-Cape-My-Dream-RV-MD453-1-Web-Version-Drop-Shadow-1-1024x731

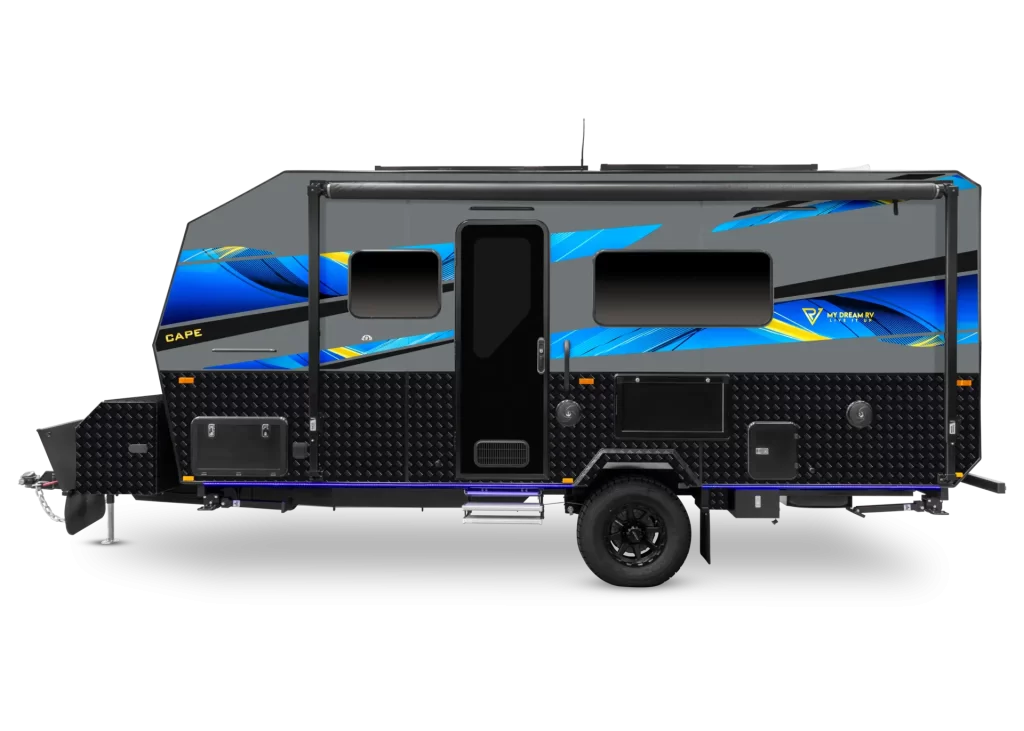

17ft-Cape-My-Dream-RV-MD453-3-Web-Version-Drop-Shadow-1-1024x731

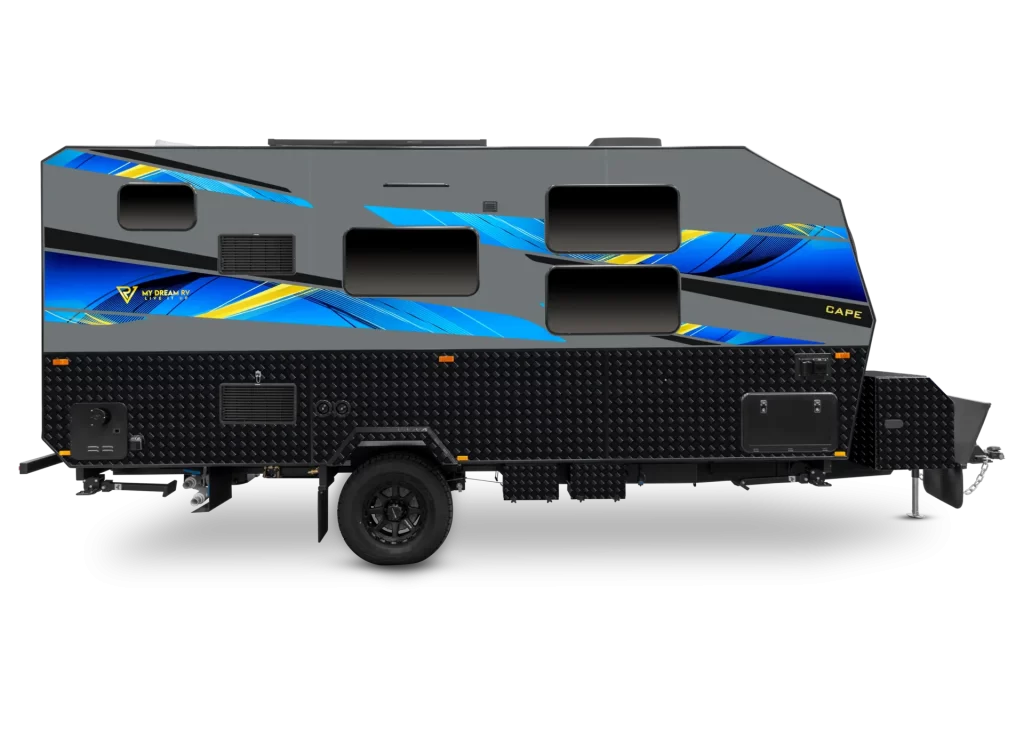

17ft-Cape-My-Dream-RV-MD453-4-Web-Version-Drop-Shadow-1-1024x731

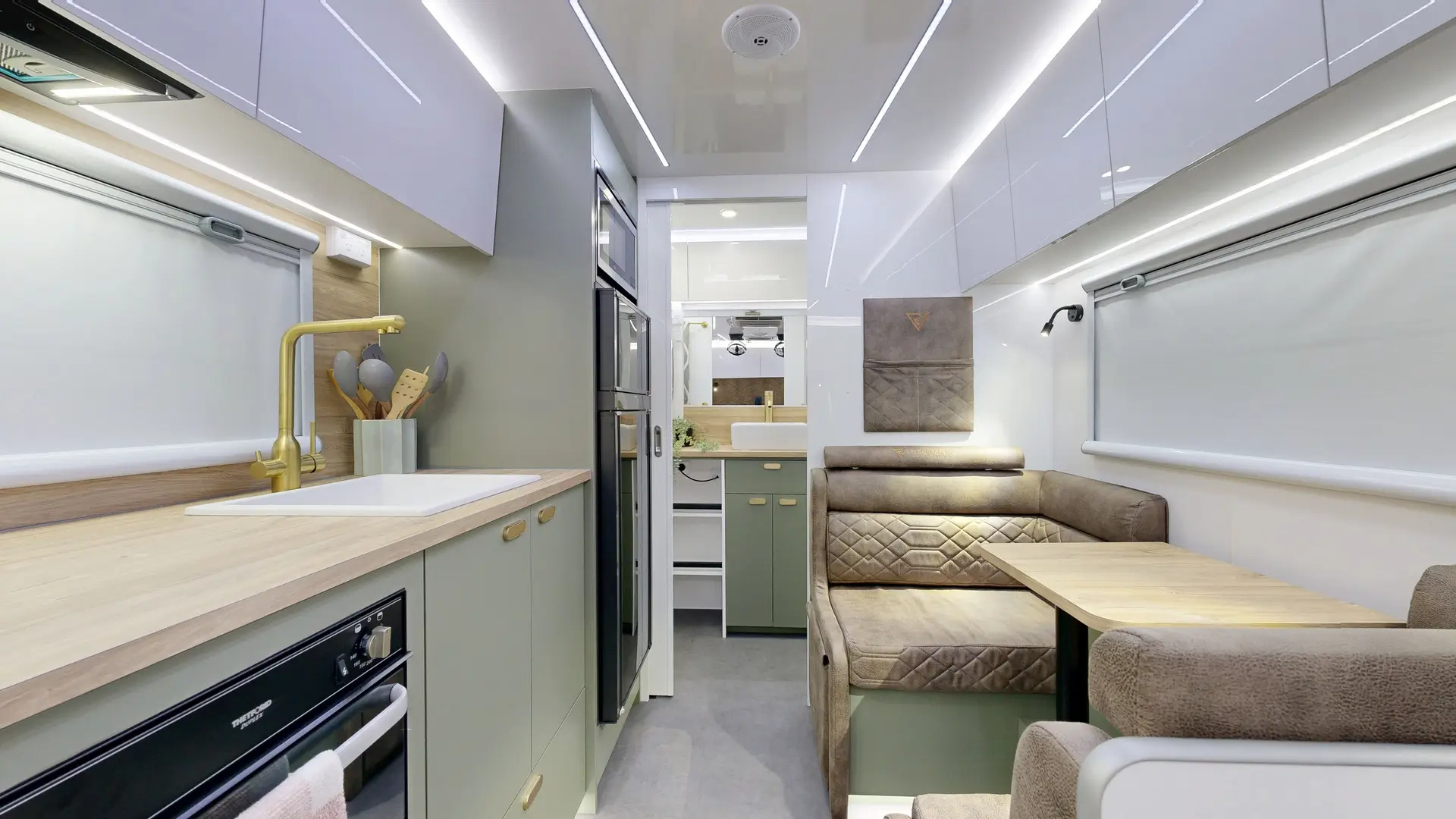

cape17-internals-1

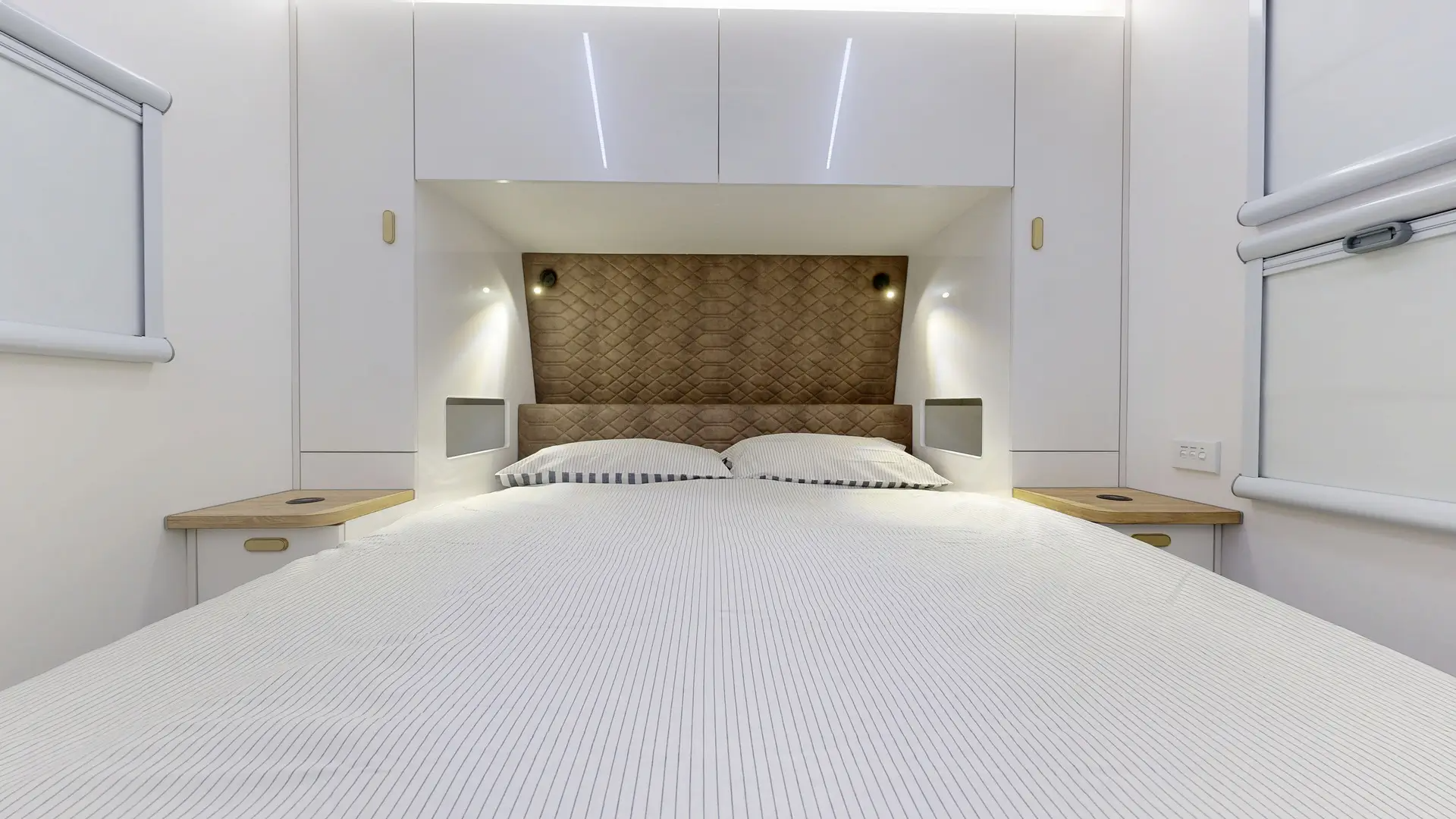

cape17-internals-2
cape17-internals-3

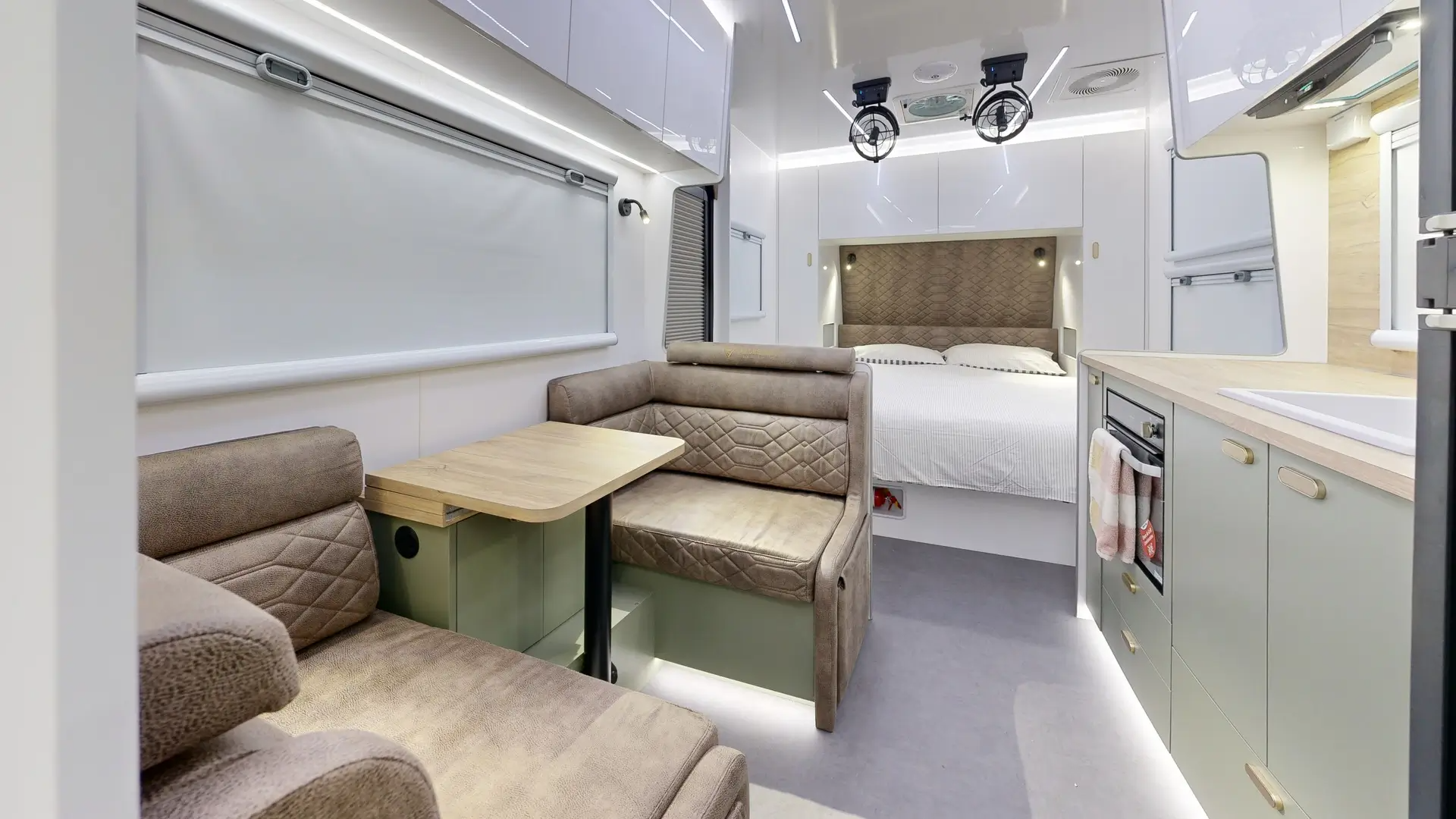

cape17-internals-4

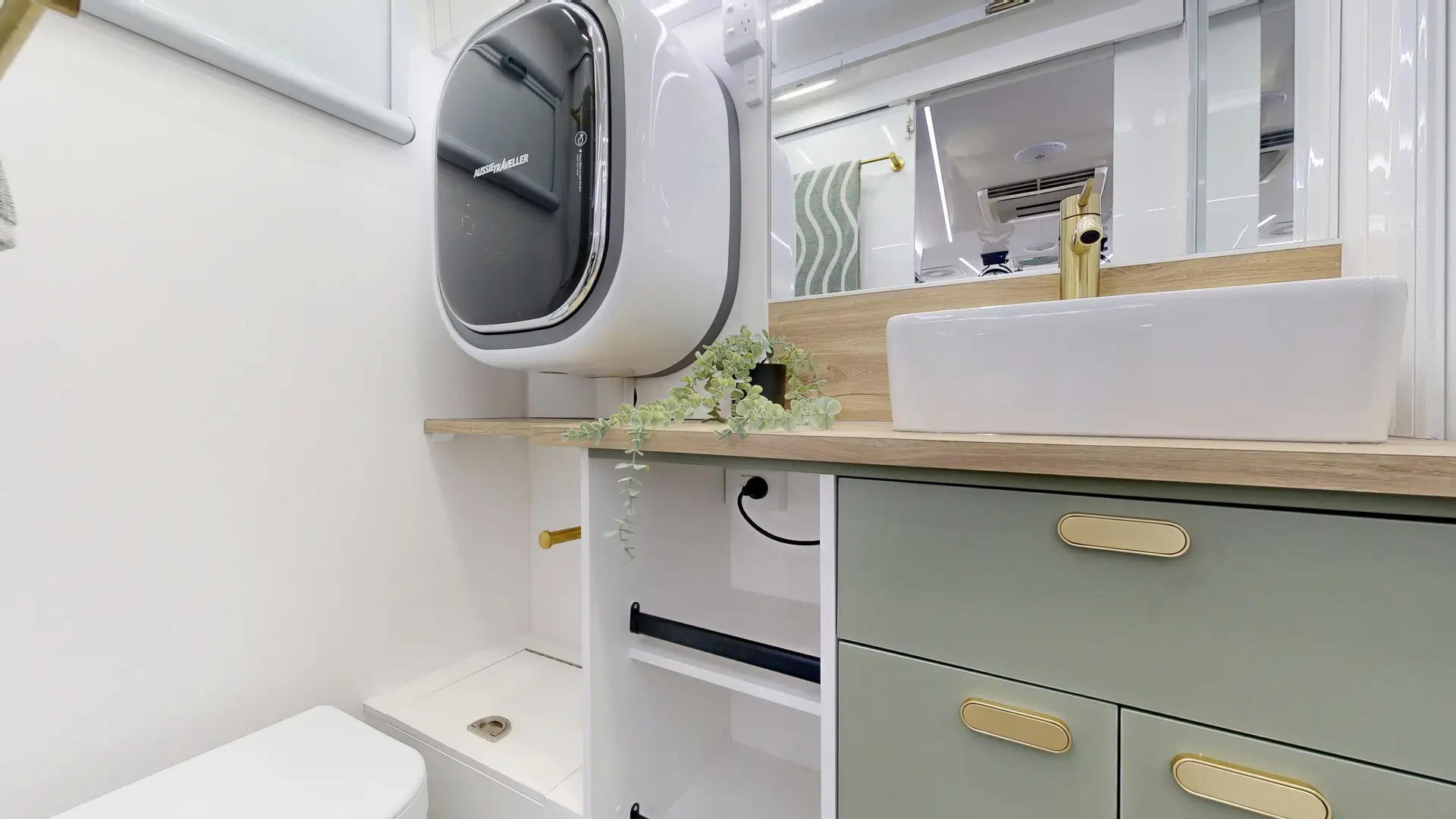

cape17-internals-5

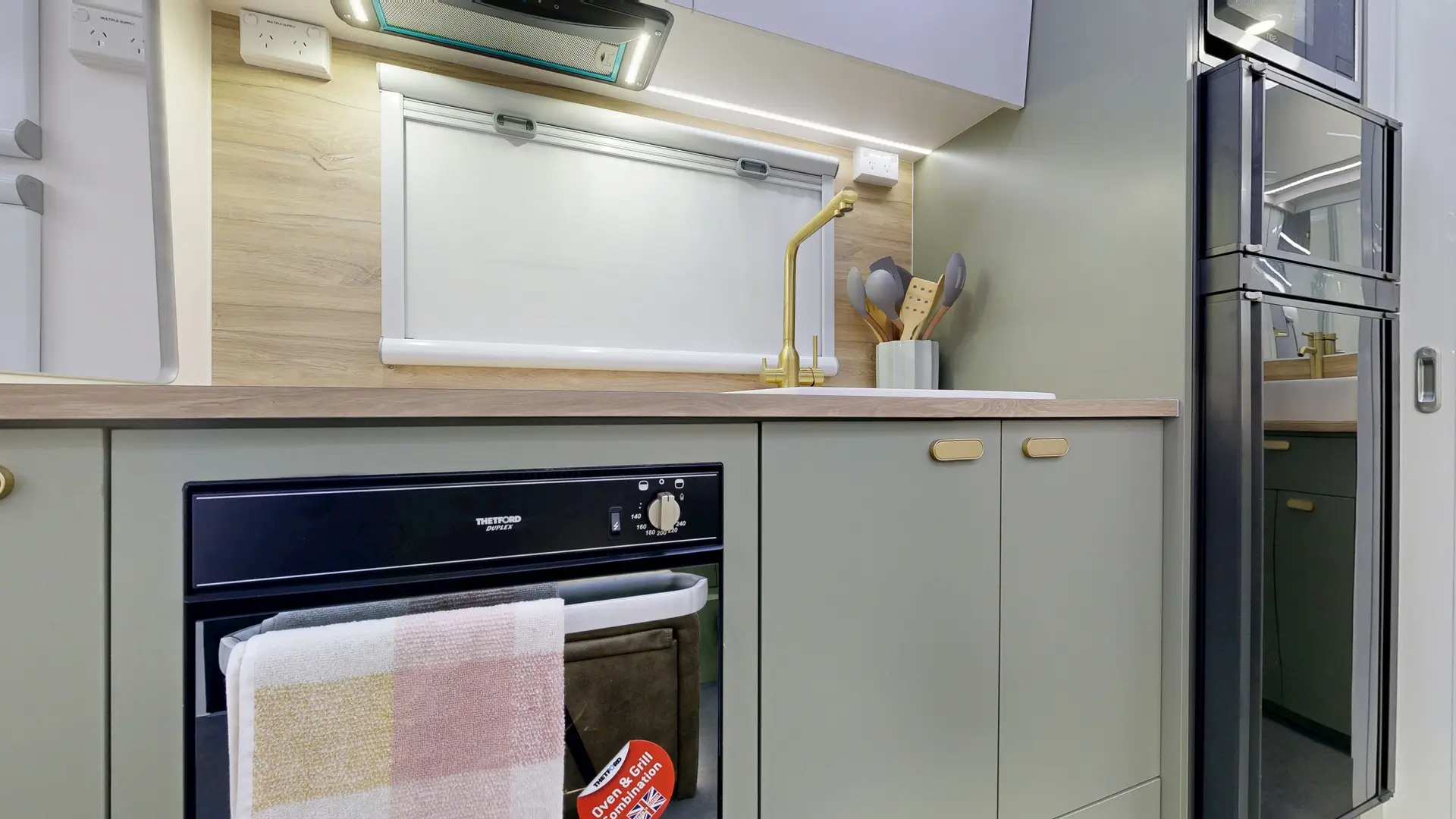

cape17-internals-6
17 Cape
17ft-Cape-My-Dream-RV-MD453-1-Web-Version-Drop-Shadow-1-1024x731
17ft-Cape-My-Dream-RV-MD453-3-Web-Version-Drop-Shadow-1-1024x731
17ft-Cape-My-Dream-RV-MD453-4-Web-Version-Drop-Shadow-1-1024x731
cape17-internals-1
cape17-internals-2
cape17-internals-3
cape17-internals-4
cape17-internals-5
cape17-internals-6

Details Specifications Options

Here's 17 Cape Floorplans and corresponding dimensions:

  • 17
CHASSIS
  • 6" Heavy Duty Chassis with 2" Raiser
  • 6" A Frame Return to Spring Hangers
  • A-Frame Extended to 2000mm
  • D035 Coupling
  • Drop Down Stabilizers
  • Galvanized Wheel Arches
  • A Frame Tap & Gas Regulator
  • 8" Jockey Wheel
  • Checkerplate Water Tank Hose Guard
  • 12" Disc Brakes w/ Sway Control Adapted
  • H/Duty 3 Arm Bumper
  • Stage 4 Airbag Suspension
  • Alloy Pull Out Step
  • Safety Breakaway System
  • 265/75 R16 A/T and alloy Wheels
  • Windup Jack
  • 2 x Batteries Mounted on Chassis Roadside
  • Spare Wheel Fitted to Rear Bumper
  • 1-Piece Eco Flooring
  • 1-Piece Fibreglass Roof
  • Power Jack
  • Stone Guard
  • Rear Recovery Points
  • Toolbox w/ Gen Slide, Weber Slide & Gas Bottles in the Middle
  • ATM: 3500KG


PLUMBING
  • Instant Hot Water System
  • 12V Water Pump
  • 2 x Water Tank inlets (Lockable)
  • China Vanity in Ensuite
  • Mains Presure Water Inlet
  • Flick Mixer Taps
  • 2 x 95L Water Tanks
  • Wall Mount Gas Bayonet
  • Natures Head Composting Toilet
  • Dual 9kg Gas Bottles with Changeover Regulator in Toolbox
  • 276L Compressor Fridge (except for 16ft & 17ft models)
  • 2 Burner Portable Induction Cooktop
  • Thetford Duplex MK3 Grill Oven
  • Large Bowl Kitchen Sink w/ Drainer
  • Water Filter in Sink with 3 way Tap
  • Twin Water Level Gauges
  • A Frame Mains Pressure Tap
  • Grey Water Tank
  • Grey Water Bypass
  • Wall Mounted Washing Machine
  • External Shower


INTERNAL
  • Laminate Benchtops
  • Wardrobes with pigion hole storage
  • CNC Furniture & Partitions
  • 2 Single Towel Rails, 1 Toilet Roll Holder
  • Smoke Detector
  • Grab Handle on Entry Door
  • Fire Extinguisher
  • Splashbacks
  • Premium Soft Close Drawers on Metal Runners
  • Flatbed Microwave
  • Cutlery Tray
  • Mirror in Ensuite
  • Pillowtop Mattress
  • Telescopic Table Leg if Applicable
  • 12V Rangehood
  • Leatherette Upholstery w/ Footrests and Headrests
  • Flush Mounted Concealed Handles
  • Removable Shelves in Cabinets


EXTERNAL
  • 700mm Side Checkerplate
  • Front & Rear Checkerplate
  • Locking Main Security Door
  • Aluminium Frames
  • Wall & Roof Insulation
  • Black External Trim
  • 12V Hatches to Toilet & Shower
  • EV2 Double Glazed Windows with Blinds
  • External Fold Down Picnic Table
  • Roof Air Conditioning
  • Rain Sensing Hatch above the Bed
  • Galvanized Tunnelboot Liner
  • Awning
  • Aluminium Composite Panel Sides
  • Checkerplate Wheel Spats
  • Premium Artwork Decal
  • 12V DRS Next to Hatch above the Bed
  • 6-Step Ladder
  • External Pantry


ELECTRICAL
  • Touch Screen Stereo with 2 x Roof Speakers
  • 4 x 200W Solar Panels with Separate Solar Regulator
  • Door Light & Entry Handle
  • 24" Flat Screen TV on Wall Bracket
  • Roof Omni Directional Antenna
  • LED Strip Lighting in the Ceiling, above/underneath OHC, in Kicker
  • 12V/USB Socket & TV Point @ external
  • 12 Pin Trailer Plug with Charging and Fridge Capabilities
  • LED Strip Light Under Chassis
  • 2 x LED Reading Lights in Bedroom + 2 in Lounge area
  • 240V/USB Double Power Points , 2 x in Robes + Lounge
  • Reversing Camera & Car Monitor Kit
  • 2 Way Switch in Bedroom to Ensuite Lights
  • External TV Box
  • Victron MultiPlus - II BMS w/ 7" Colour Display, 2x 300amp Lithium Batteries
  • 4x Annexe Lights w/ Bug Lights - 2 under Awning, 1 above Tunnelboot, 1 on Roadside
  • 240V 15amp Inlet & 240V 10amp Outlet
  • 2 x External Marine Speakers
  • 2x Wireless Phone Chargers in Bedside Tables
  • Electronic Sway Control (ESC)
  • 2x Bedroom Fans
  • Front & Rear LED Spot Lights
  • 3000W Inverter Wired to All GPOs inc. MW and Air Con w/ 25amp DC to DC Charger
  • Starlink Provision Mounted in TV Box

17 Cape FLOORPLAN
